Reviewed - XCEE industrial plugs and sockets from Lewden Palazzoli

Used across the world but with a multitude of names, IEC 60309 plugs and sockets are the workhorse connectors of industry. We check out the new X-CEE range from Lewden Palazzoli.
Words by Gordon Routledge
Video Review - Gary Hayers & Joe Robinson
​Monday 9th December 2019
SHARE IT

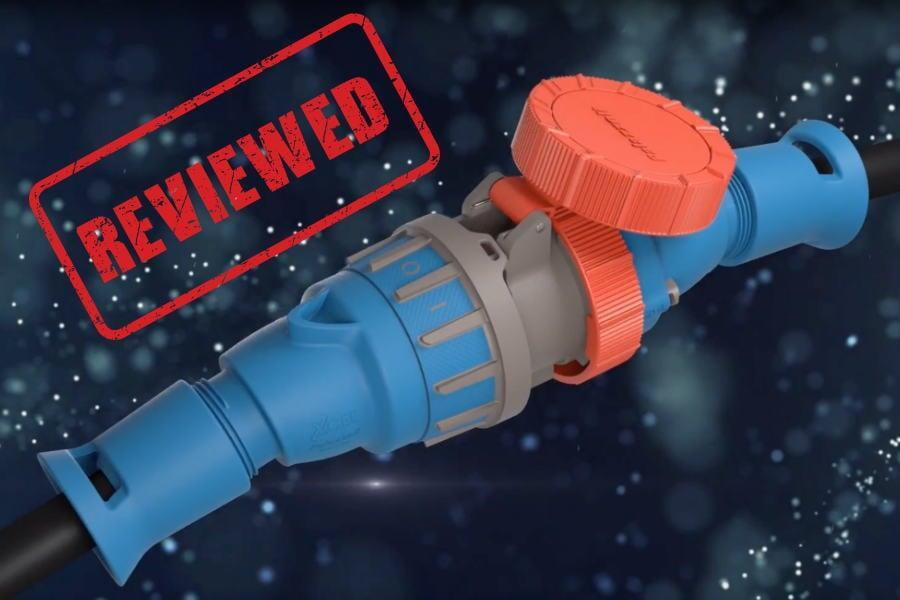

60309 industrial plug and socket
The new XCEE range from Lewden Palazzoli
One of the most widely used types of plug and socket,  you'll find in applications from chemical plants to TV studios.  The official title for this family is IEC 60309 "Plugs and socket-outlets and couplers for industrial purposes." In real life, you may call them by the manufacturers' range name. The most common term used in the UK is  "Commando socket" based on the  Commando plug and socket range developed by Mk Electric.  Mennekes, Marechal, Bals and Ceeform are also well-known manufacturer ranges.

You may refer to them by the colour, current or voltage, e.g. 16A blue plug or yellow 110v plug.  The actual application may be the association such as a blue caravan plug.

While IEC 60309 lays down the standards in terms of dimensions, current ratings and colour.  The manufacturer determines the quality and performance. Like all plugs and sockets, there is a massive variance. You need three hands to wire some of the commodity products.

Lewden Palazzoli has over a century of experience making industrial connectors. Their latest XCEE range brings this wealth of experience together with the newest production techniques to create what could be the gold standard of industrial plugs.

VIDEO: We check out the XCEE range

Get electrical articles like this in your inbox. Subscribe to eFIXX
Work Email:
Name:

Expanded IP ratings

Most ranges of Commando style 60309 sockets are available in IP44 or IP67 ratings. The XCEE range goes to IP69 an expanded capability allowing operating in areas subjected to high-temperature jets of water. Useful for applications within the food industry which need regular washdowns.

Industrial socket IP rating
Expanded IP range to IP69

Robust construction

The vital bit for the end-user, how easy are they to use? The XCEE range has a great look and feel. A robust build quality, coupled with an ergonomic design. Industrial users will find them easy to connect even with gloved hands. Attention to detail, such as the tapered cable grip should ensure long service life. The plug and socket pins are nickel coated, as opposed to bare brass in low-cost plugs. This process reduces the contact resistance and makes them less likely to tarnish in industrial environments.

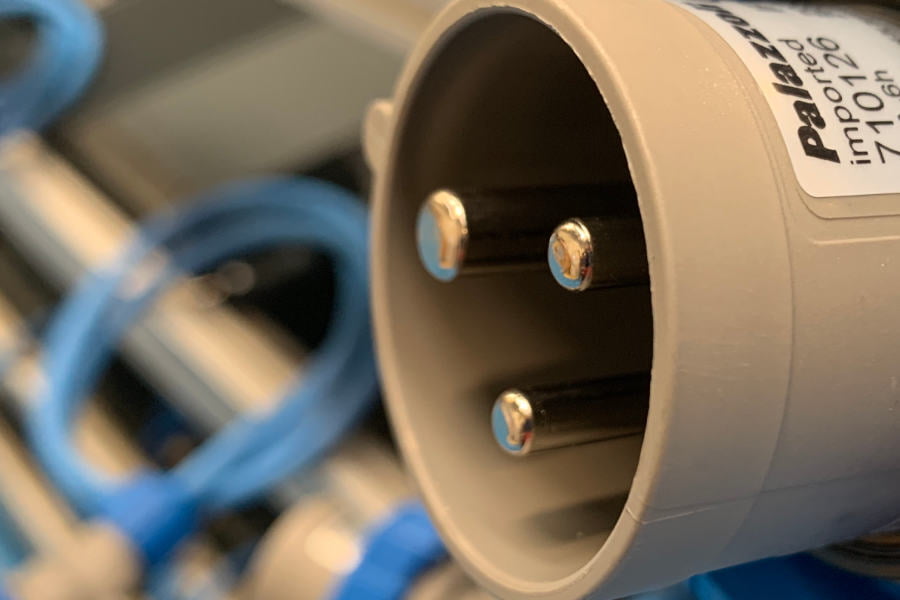

nickel plated 16a plug pins
Nickel plating reduces contact resistance.
The gasket seals within the socket flaps are moulded as one component, so they can't fall off or loosen.

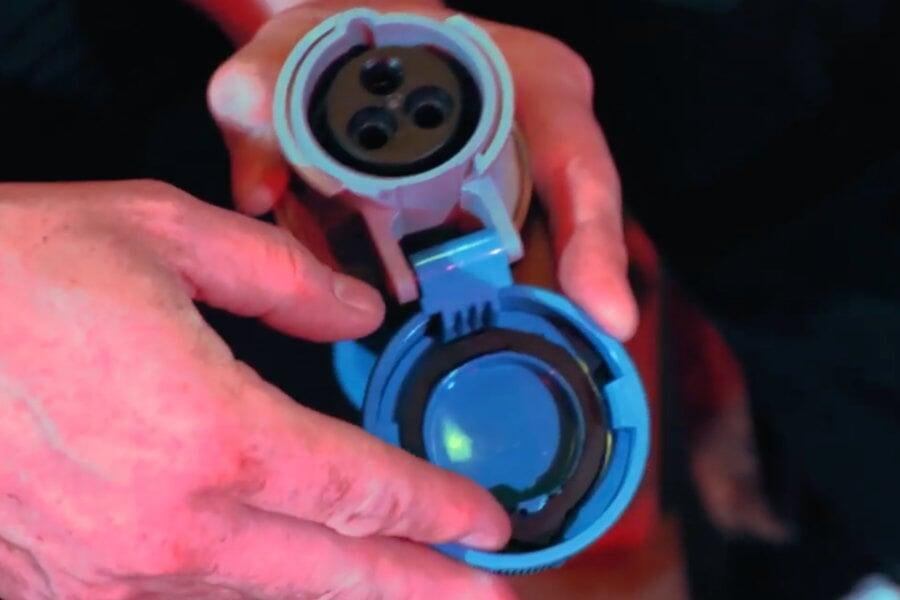

16A socket gasket
Sealing gasket moulded to socket as one component.

Easy to wire

From an installers viewpoint, it's the small details which make a difference. Screwless access to the wiring chamber speeds up the wiring time, flip up a locking tab and twist off the cap. Inside you'll find cage type wiring terminals so no risk of conductor damage.  A chunky sealing gland which can be tightened with a spanner completes the package.
cage clamps
Cage clamp style terminals.

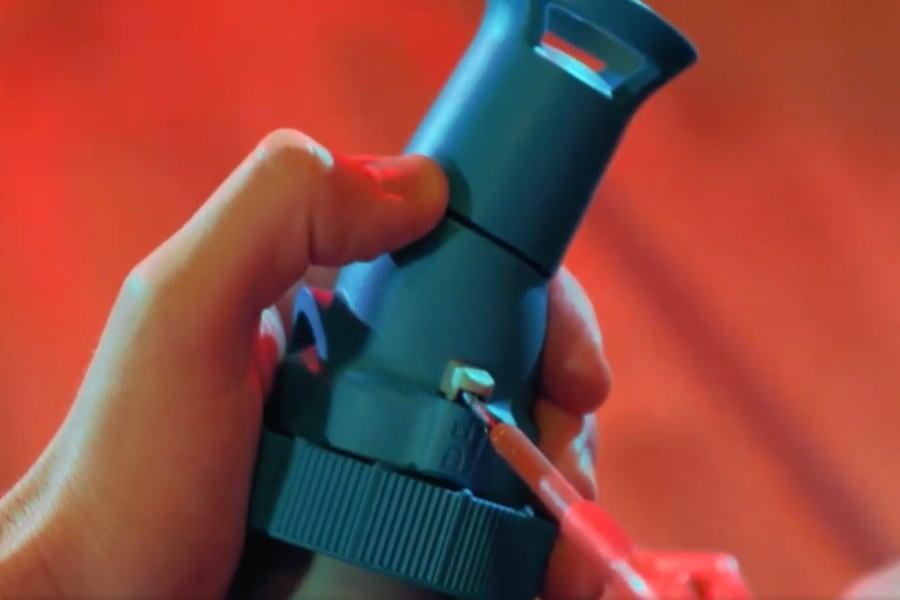

16a blue plug cover
Screwless access to wiring chamber

Introducing the Rotor switch

A world-first for the XCEE range is the option of an inline interlocked rotary switch. The Rotor switch locks the plug in-place so a load can't be disconnected when powered.


The Rotor switch is rated for AC23 duty allowing safe operation inductive loads such as motors or lighting.

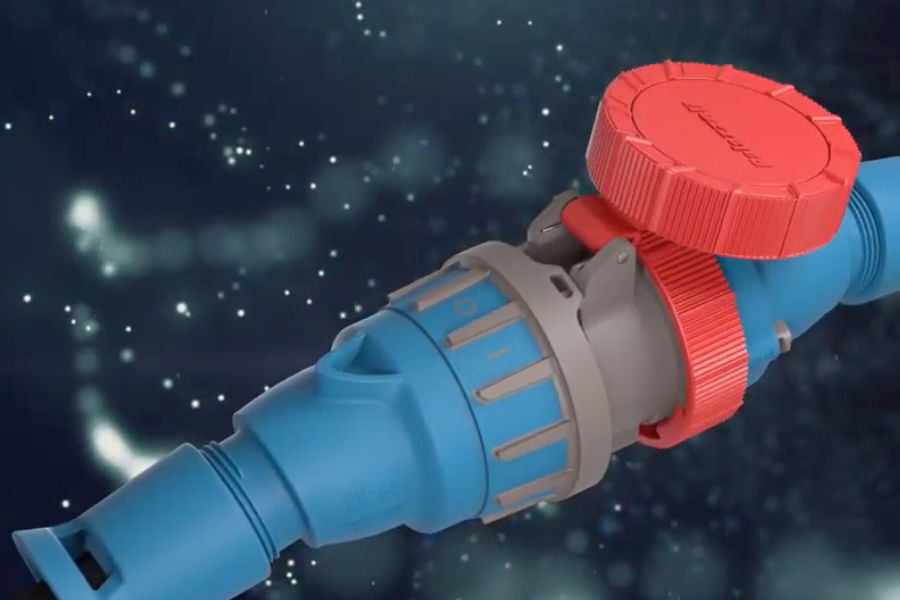

16A socket gasket
The unique Rotor switch

VIDEO: How it's made - the secrets of the XCEE range

Our verdict

A rock solid range of industrial plugs and sockets which are suitable for the most demanding applications. Much easier to wire than other commando style plugs on the market.
